7.1 Temperature regulator setup

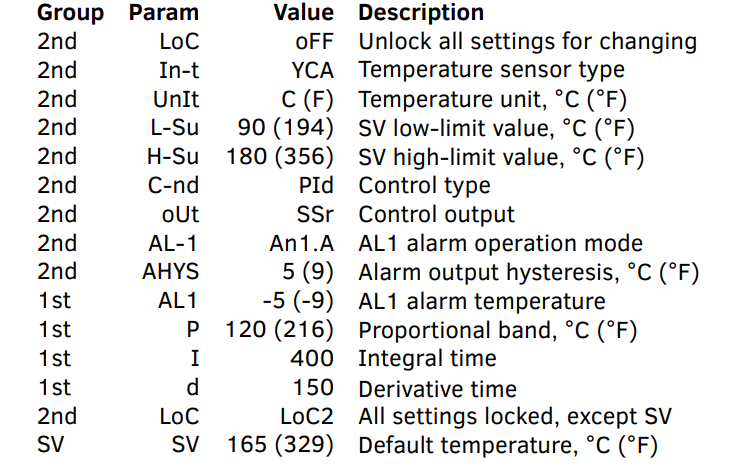

Temperature regulator has three setting groups: 1st setting group, 2nd setting group,
and SV setting group (the main indication mode). The settings must be changed in
the same order as they appear in the list. Note that after changing In-t (temperature sensor type) or UnI-t (temperature unit) values, parameters H-Su , L-Su , AL1 ,
AL2 , AHYS must be set again. The regulator has more parameters than listed below;
if you see a parameter not from the list, skip it and move to the next one.
1. To access the 2nd group of parameters press and hold for 4 seconds; once
you see PAr2 on the display, release .
2. To access the 1st group of parameters, press and hold for 2 seconds, once
you see PAr1 on the display, release .
3. Press to go through the parameters. Actual value of the parameter is shown
in the lower line of the display (TCN4S only). To see the parameter’s actual
value on TC4 unit, press .
4. Press or to change the value.
5. Press to proceed to the next parameter.
